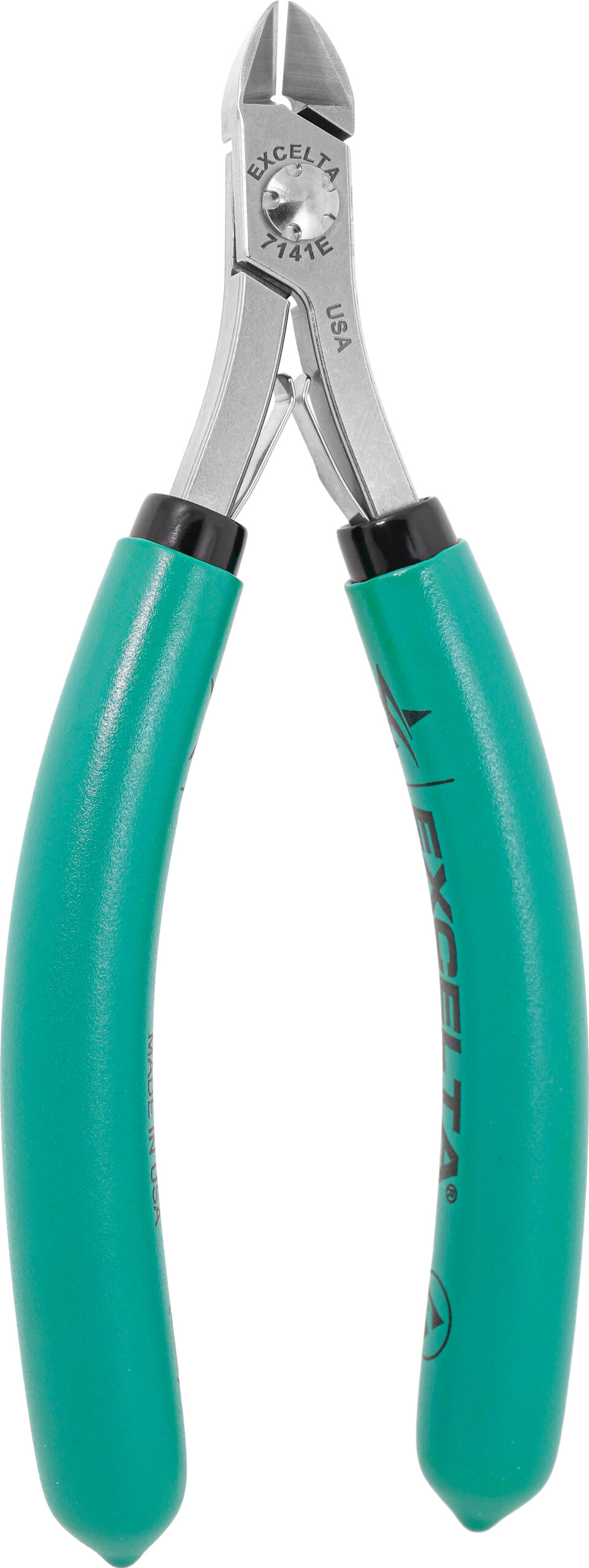

Excelta Cutters – Medium Oval Head – Optimum Flush

The 7141E Lazer Line? medium oval optimum flush cutter has a cutting capacity of .005″ – .045″ soft wire. It is made of carbon tool steel with induction hardened cutting blades to RHC 63-65. The CNC machining allows the joint surfaces to be perfect to allow for long life. The Anti-Static grips are soft cushioned foam and have a surface resistivity of 10?? ohms/sq. The dual leaf springs provide smooth action.

  • Product Type: Side Cutters
  • Application: Designed for cutting .045″ soft wire leaving a small ‘pinch’ on the wire
  • Precision Level: 5 Star
  • Surface Resistivity: 10?? ohms/sq
  • Shape: Round Head
  • Trade Name: TealShield?/Lazer Line?
  • Material: Carbon
  • Tip Size (CTM): .050″ x .04″ (1.25mm x 1mm)
  • Body Width:
  • Body Height: .25″ (6.25mm)
  • Tip Angle: 14.25?
  • Type of Cut: Optimum Flush
  • Max Cut Capacity (IN): .005 – .045″
  • Max Cut Capacity (MM): .13 – 1.13 mm
  • Max Cut Capacity (AWG): 36 – 17 AWG
  • OAL: 5.75″ (143.75mm)
  • Net Weight (Ounces): 3
  • Prop 65: Yes
